#Fresh water from seawater

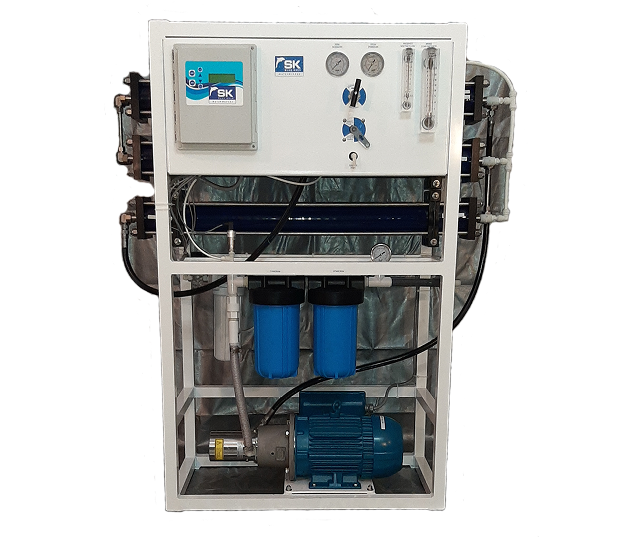

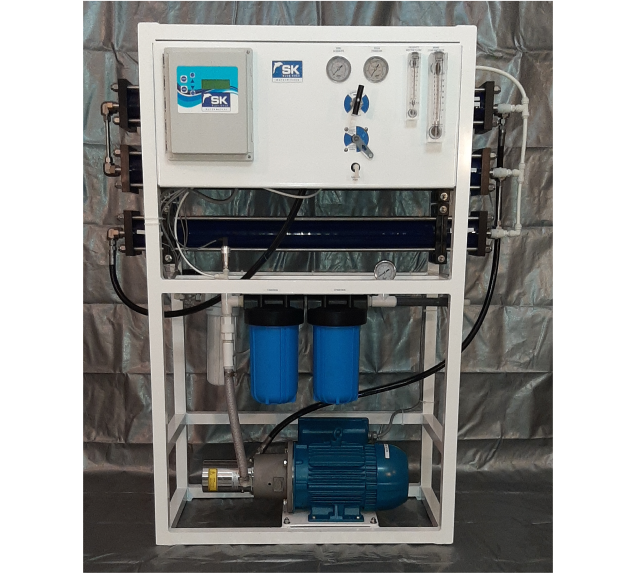

Commercial Series Desalination Systems
Designed for resorts, communities, and vessels, our Commercial Series Desalination Systems provide reliable, high-quality freshwater with a compact, factory-tested design.
- Resorts/ Hotels
- Island Homes
- Communities/Municipal
- Off-Shore Vessels
#BUILT FOR PERFORMANCE
Features & Benefits
Our systems offer automatic controls, premium components, and durable construction for reliable freshwater production in any environment.
- Automatic electronic controls
- Filmtec membranes
- 316L Stainless fittings
- Concentrate flow meter
- Low pressure gauge
- Low pressure lockout
- Powder coated aluminum frame
- High TDS diverter
- Danfoss pump
- FRP membrane housings
- Product flow meter
- High pressure gauge
- Pre-Filter pressure gauge
- TEFC electric motor
Specifications
| MODEL | GPD | GPM | MEMBRANES | HP | VOLTAGE | PHASE |
|---|---|---|---|---|---|---|
| CS-3000 | 3,000 | 2.1 | (3) 4.0×40 | 5 | 115/208-230 | 1 or 3 |
| CS-5000 | 5,000 | 3.5 | (5) 4.0×40 | 10 | 115/208-230 | 1 or 3 |
| CS-10000 | 10,000 | 7.0 | (3) 8.0×40 | 20 | 208-230/460 | 3 |
| CS-15000 | 15,000 | 10.4 | (4) 8.0×40 | 25 | 208-230/460 | 3 |
| CS-20000 | 20,000 | 13.9 | (5) 8.0×40 | 30 | 208-230/460 | 3 |
